CIMC Trailer Series

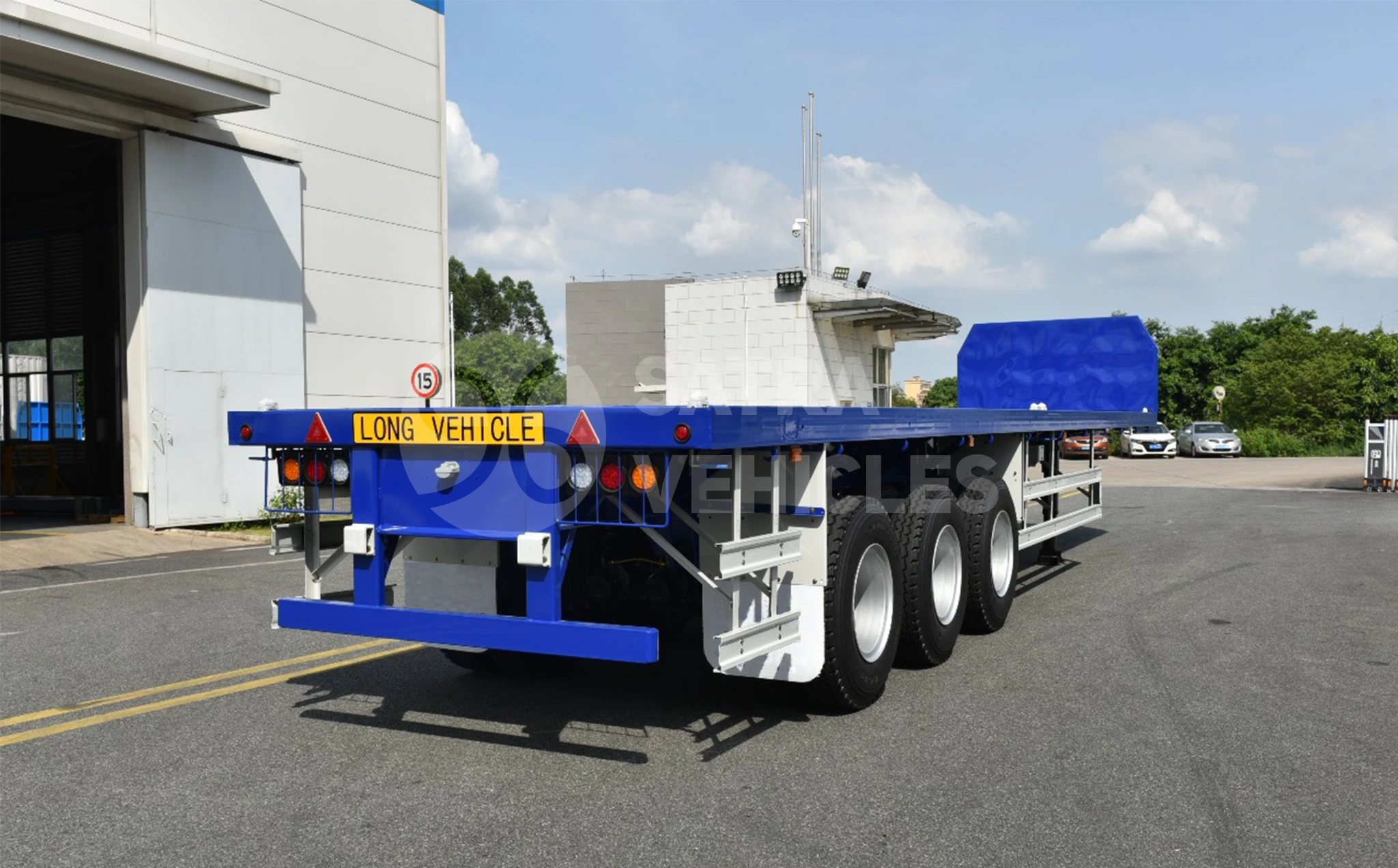

CIMC Trailer Flatbed 40 FT
Trailer flatbed Satra Vehicles unggul dalam berbagai aspek, menawarkan solusi transportasi yang handal dan efisien. Dengan desain inovatif dan teknologi mutakhir, trailer kami dirancang untuk memberikan performa optimal di segala medan. Struktur yang kokoh dan material berkualitas tinggi memastikan daya tahan yang luar biasa, sementara kapasitas muatan yang besar dan fleksibilitas dalam penyesuaian konfigurasi memenuhi beragam kebutuhan logistik. Produk kami telah diuji untuk memastikan keamanan dan kenyamanan dalam penggunaan, menjadikannya pilihan utama untuk berbagai keperluan transportasi Anda. Tersedia ukuran 20/40/45 FT
| Trailer Type | 40' Flat bed Semi-trailer with 3-axle | |
| Parameter | Overall Dimension (mm) | LxWxH: 12420x2480x1510 |
| King pin setting (mm) | 800 King Pin position, from the face of front bolster | |
| Fifth wheel height (mm) | 1250 | |
| Axle space (mm) | 7000 + 1310 + 1310 | |
| Tare weight (KG) | 8,2 | |
| Payload (KG) | 60 | |
| G.V.W.R (KG) | 68,2 | |
| Fabric | Main beam(mm) | Q345 high tensile steel, 500mm height, fabricated "I" beam |
| Flange and web(mm) | Q345 high tensile steel, thickness 16/8/16 | |

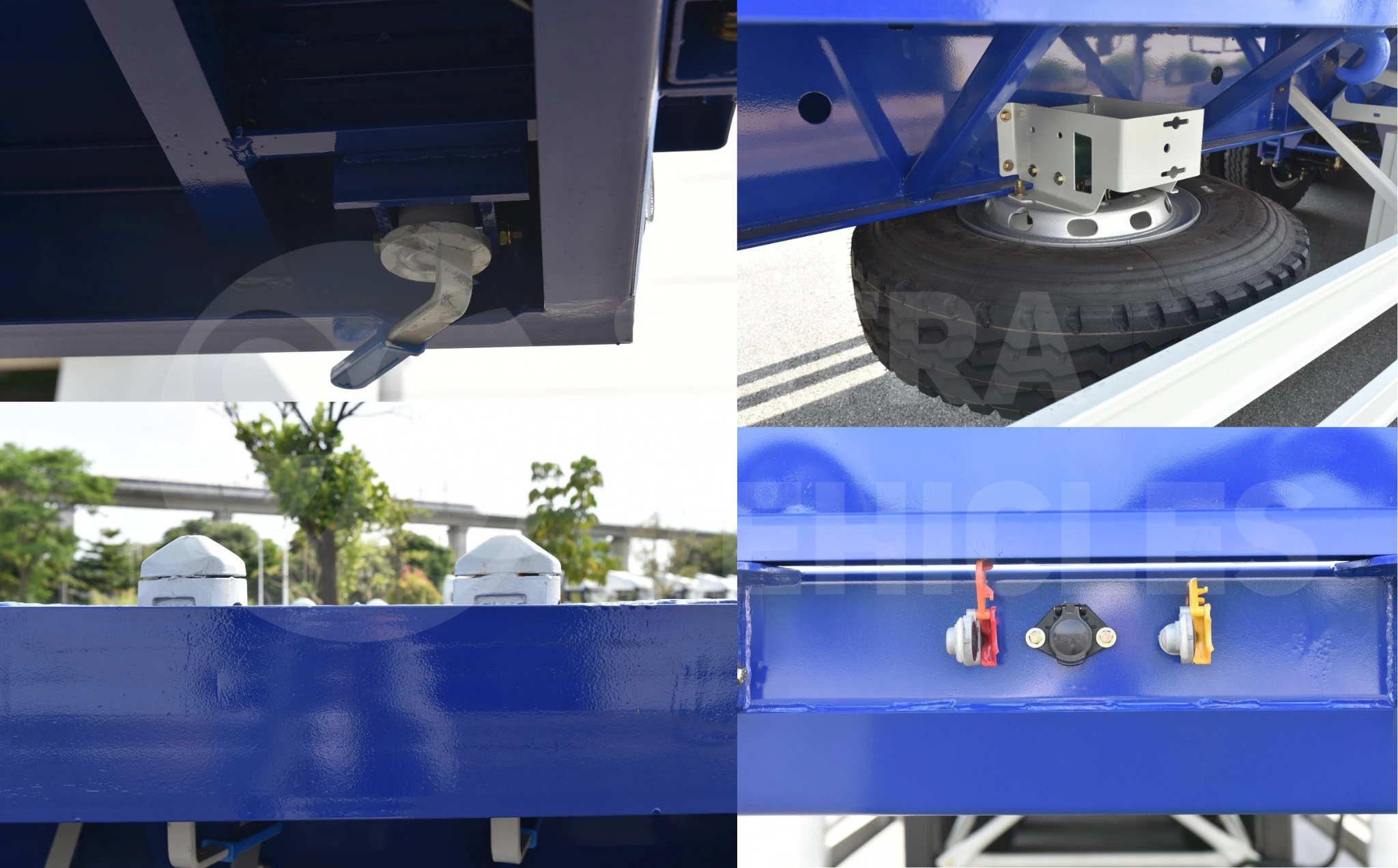

| Lock | 8 retractable locks | |
| Side rail | 160mm hot roller "C" type channel | |
| Cross member | Fabricated C channel, W type | |
| Rope hooks | 12pcs Steel rope hooks each side | |
| Floor | 4mm Checker plate | |
| Front wall | Height: 1.2M, Factory standard | |
| Stake hole | 8pcs 100mm*50mm Stake hole each side | |

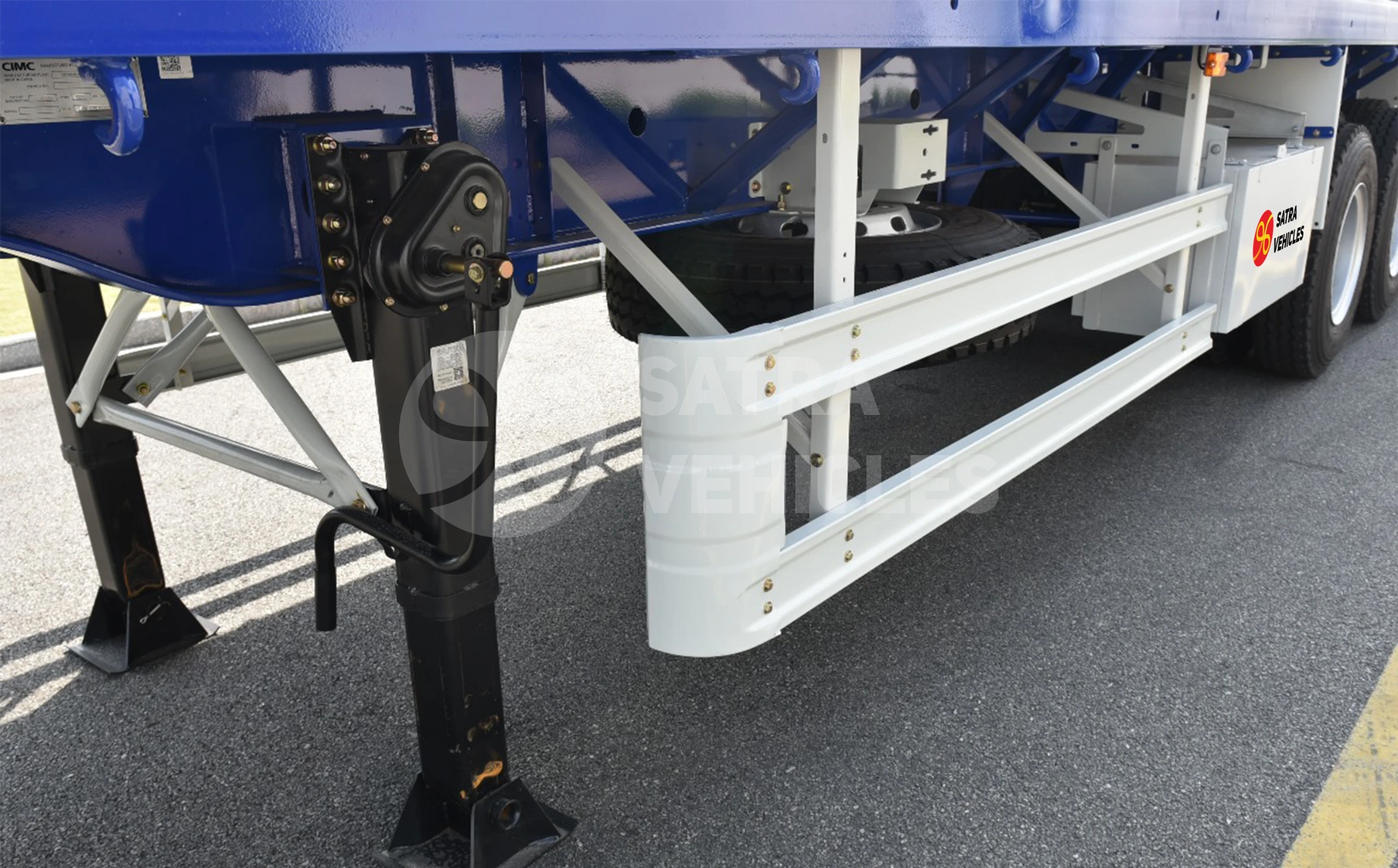

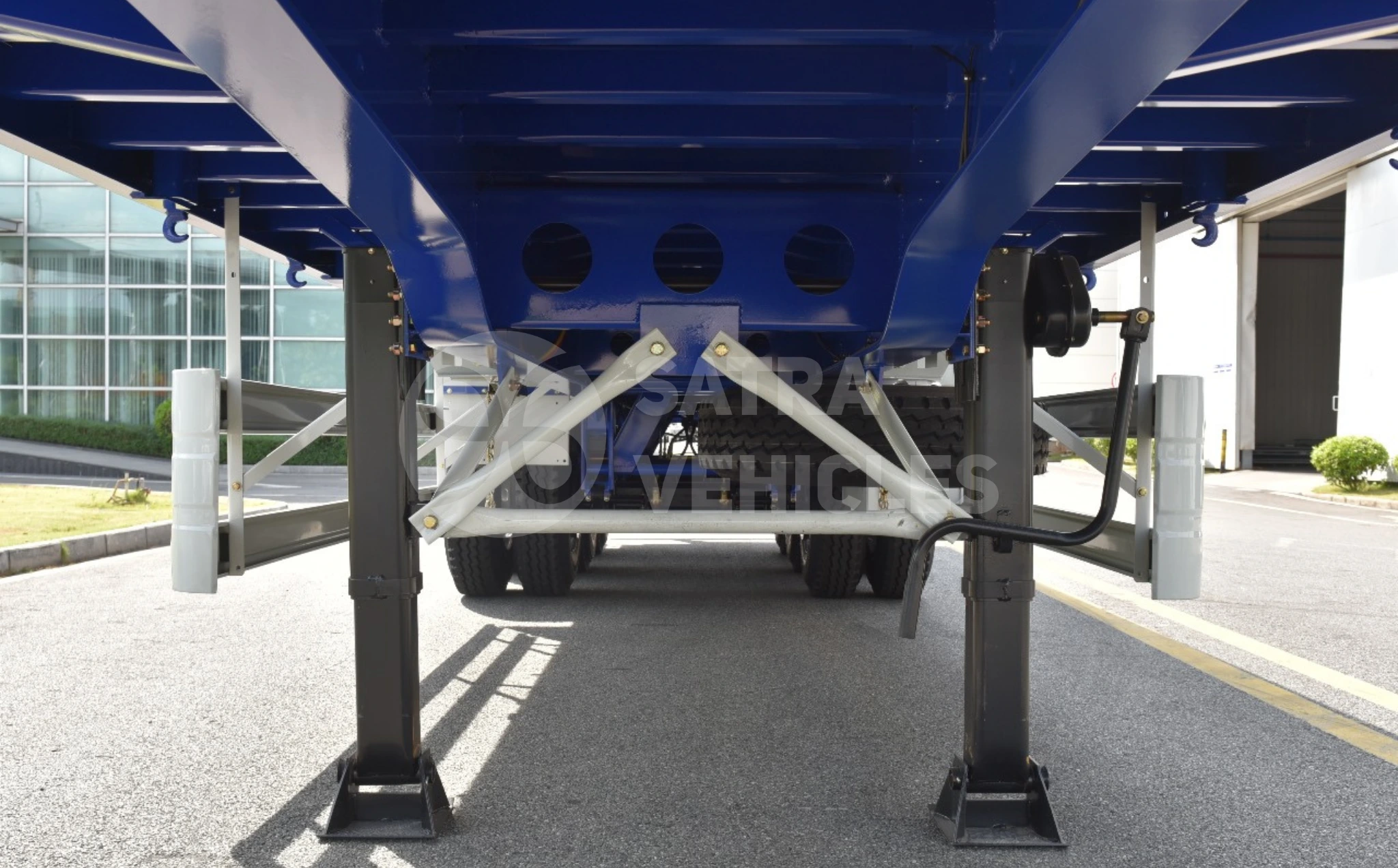

| OEM | Landing gear | CIMC Brand 19", operation crank on LHS, Static: 80ton. Lifting: 28ton |
| Kingpin | 2", exchangeable, 1Pcs, Brand: JOST | |
| Brake system | T30 single brake chamber on front axle. 30/30 type on rear & middle axles. WABCO brake valve | |
| ABS | None | |
| Suspension | Mechanical suspension with 10 leaf spring | |
| Axle | 3-axle, square, 16T capacity /axle, Brand: HJ Bridge | |
| Tire | 11.00R20-16PR | |
| Rim | 8.0V-20 steel rim, 10-hole | |
| Tool box | 1 Pcs 1M long steel box, installed on LHS, color in Grey White | |
| Spare tire carrier | 2 Pcs, color in Grey White, 1PC each side | |
| Side Guard | Steel sideguard | |
| Mud guard | Steel | |
| Electrical system | 24V, ISO1185 standard, modular harness, LED lamps | |

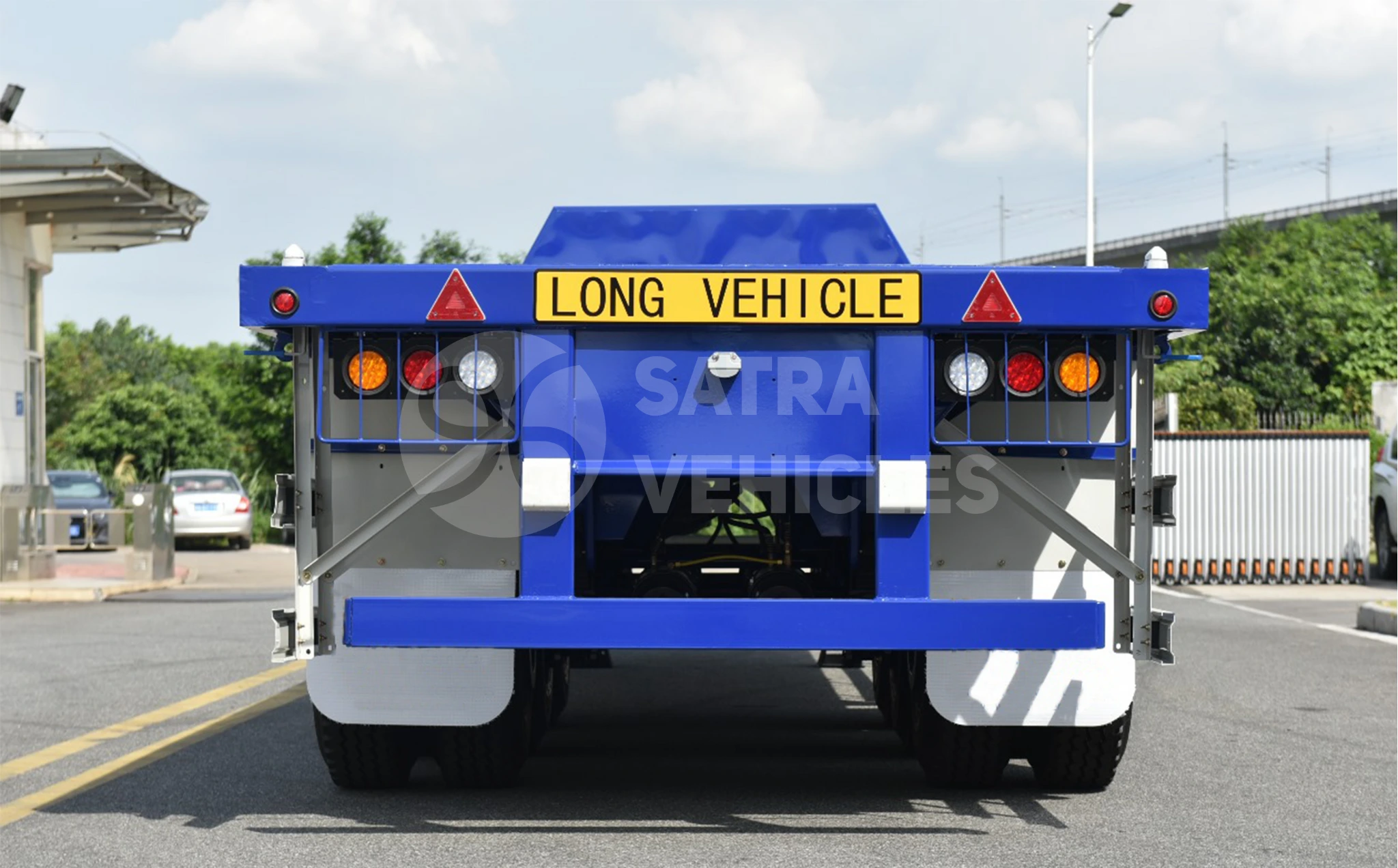

| Rear light arrangement | 2xTurn lights; 2xBrake lights; 2xReversing light | |
| Painting | Powder Coating | E-coat primer and Powder coating topcoat |
| Color | Per customer required | |
| Remark | Mudflap logo | SATRA VEHICLES |
| Marking | "LONG VEHICLE" sign on the rear end | |
