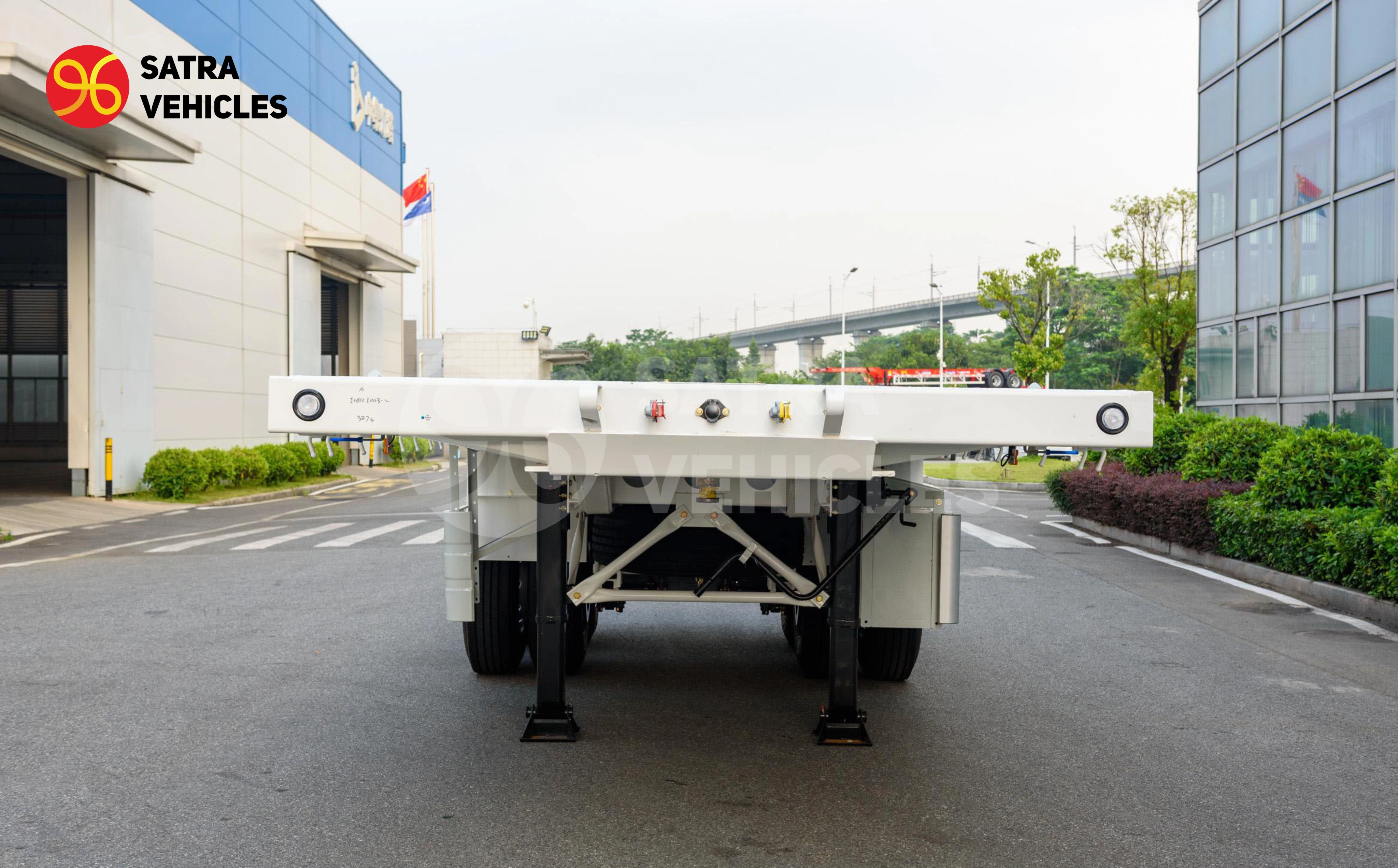

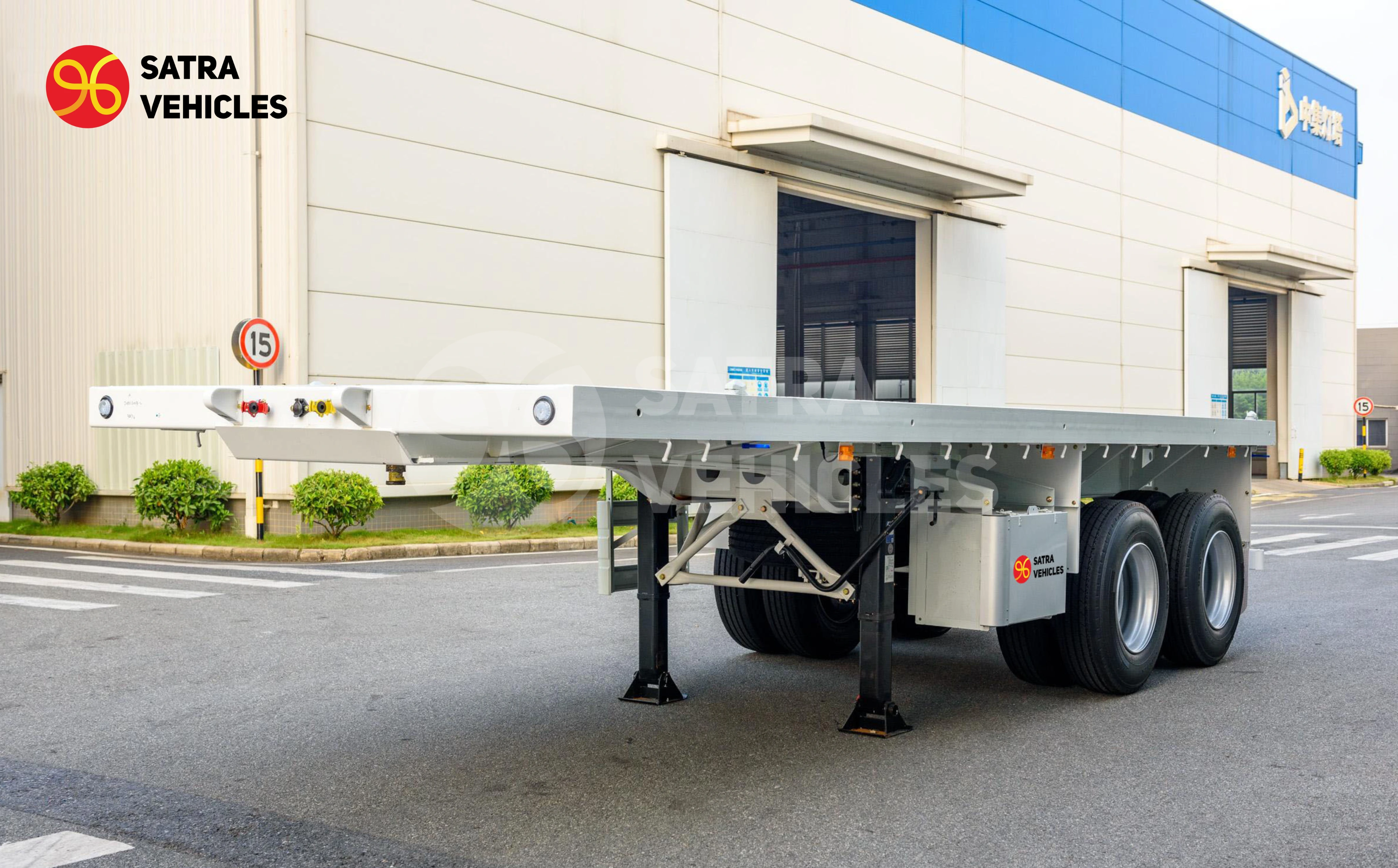

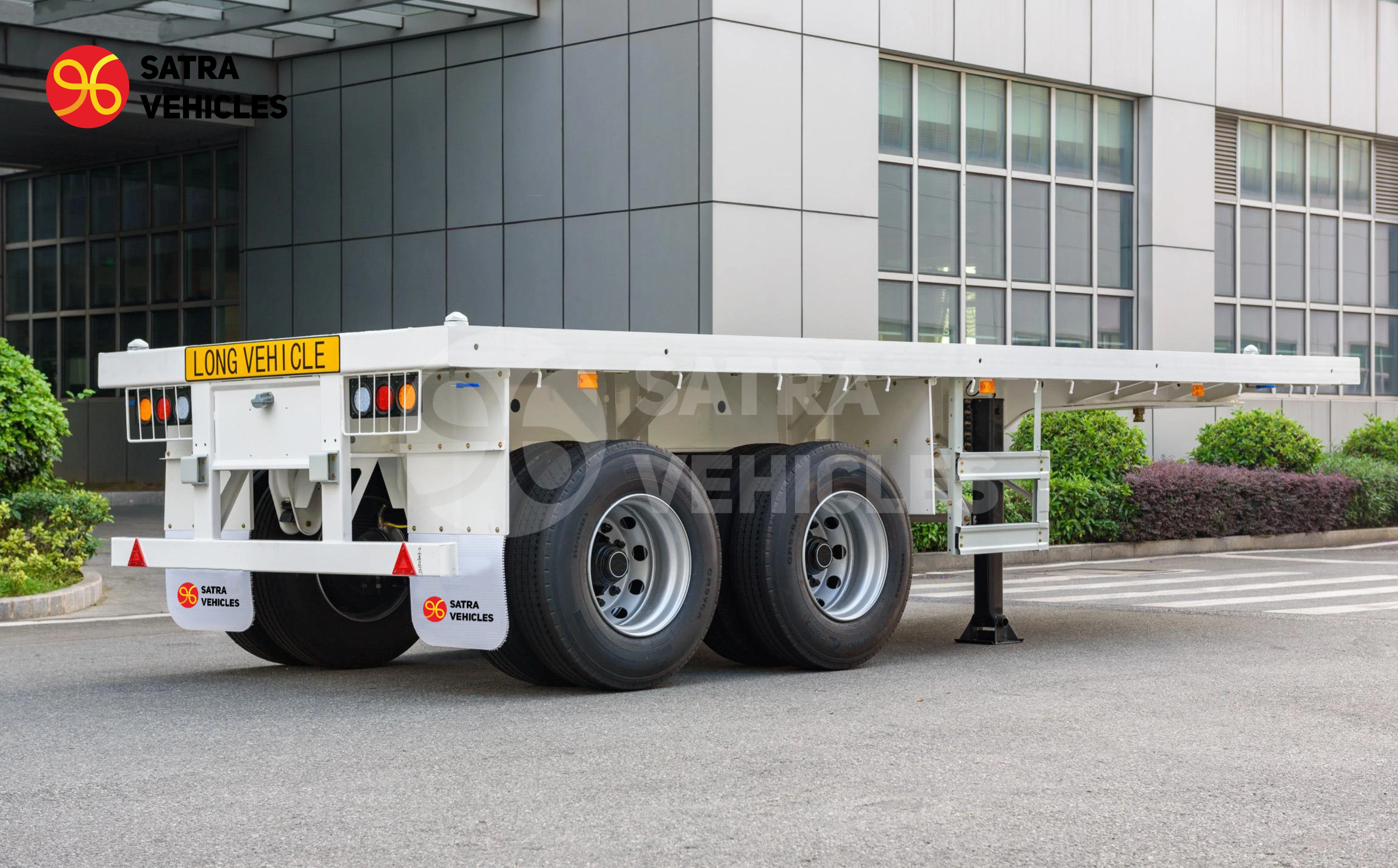

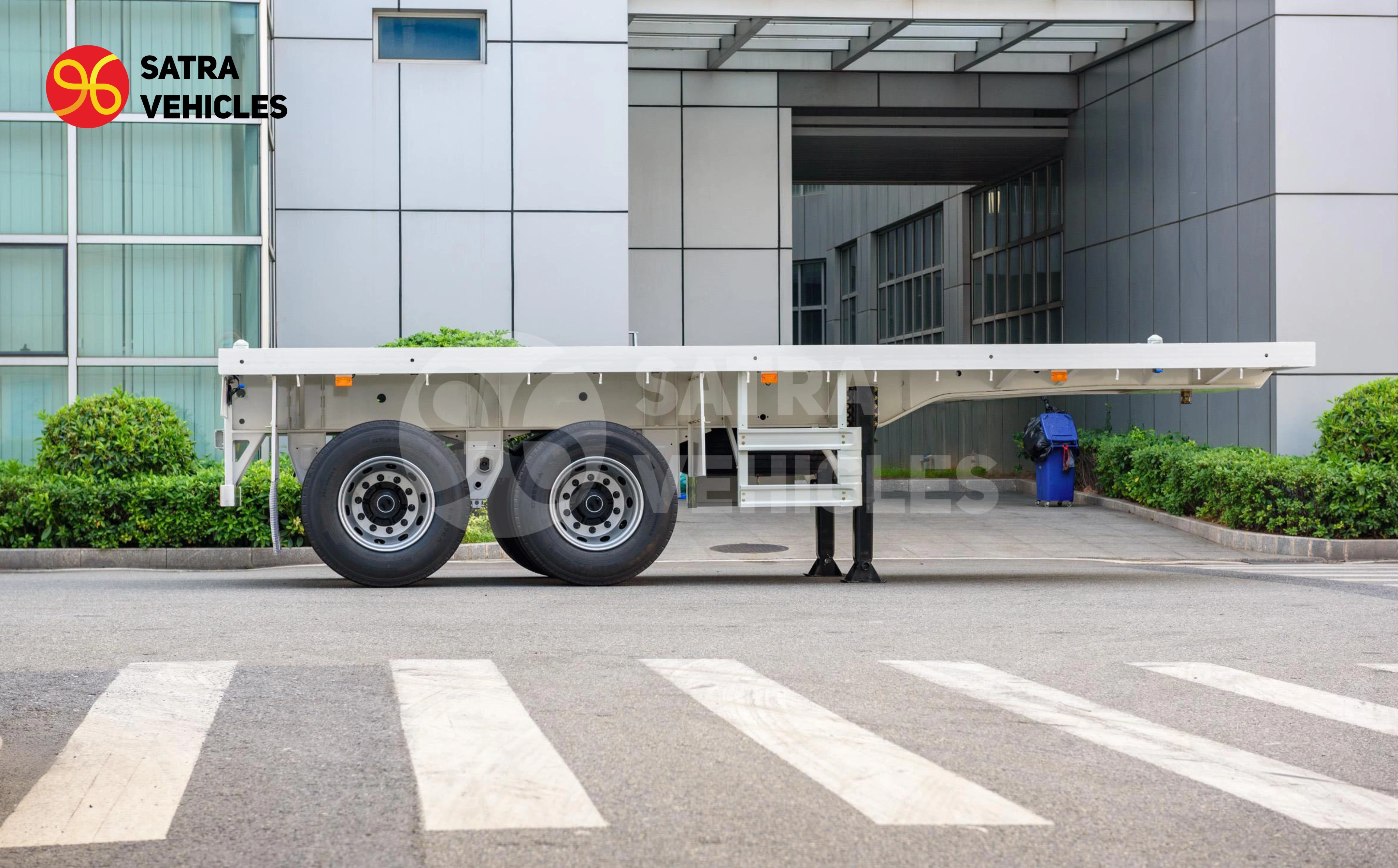

CIMC Trailer Flatbed 20 FT
| Trailer Type | 20' Flat bed Semi-trailer with 2-axle | |
| Parameter | Overall Dimension (mm) | LxWxH: 7200x2480x1510 |
| King pin setting (mm) | 400 King Pin position, from the face of front bolster | |
| Fifth wheel height (mm) | 1250 | |
| Axle space (mm) | 4250 + 1310 | |
| Tare weight (KG) | 4800 | |
| Payload (KG) | 30000 | |
| G.V.W.R (KG) | 34800 | |
| Fabric | Main beam(mm) | Q355 high tensile steel, 500mm height, fabricated "I" beam |
| Flange and web(mm) | Q355 high tensile steel, thickness 14/6/16 | |
| Lock | 4 retractable locks | |
| Side rail | 160mm hot roller "C" type channel | |
| Cross member | Fabricated C channel, W type | |
| Rope hooks | 12pcs Steel rope hooks each side | |
| Floor | 4mm Checker plate | |
| Front wall | Height: 1.2M, Factory standard | |
| OEM | Landing gear | CIMC Brand 19", operation crank on LHS, Static: 80ton. Lifting: 28ton |
| Kingpin | 2", exchangeable, 1Pcs, Brand: JOST | |
| Brake system | 30/30 type on rear & middle axles. WABCO brake valve | |
| ABS | None | |
| Suspension | Mechanical suspension with 7 leaf spring | |
| Axle | 2-axle, square, 13T capacity /axle, Brand: HJ Bridge | |
| Tire | 11.00R20-18PR | |
| Rim | 8.0V-20 steel rim, 10-hole | |
| Tool box | 1 Pcs 1M long steel box, installed on LHS, color in Grey White | |
| Spare tire carrier | 1 Pcs, color in Grey White | |
| Side Guard | Steel sideguard | |
| Mud guard | Steel | |
| Electrical system | 24V, ISO1185 standard, modular harness, LED lamps | |

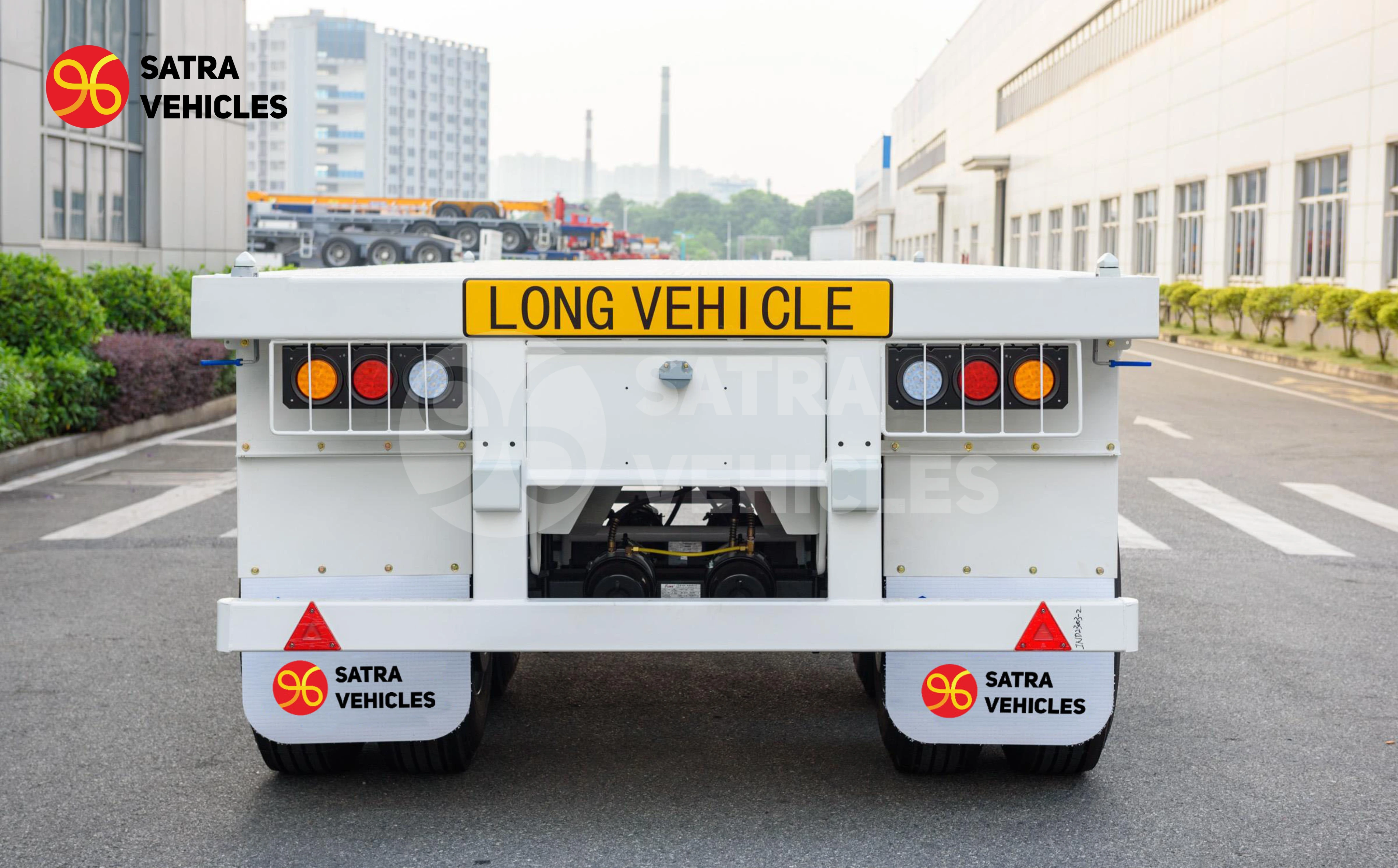

| Rear light arrangement | 2xTurn lights; 2xBrake lights; 2xReversing light | |
| Painting | Powder Coating | E-coat primer and Powder coating topcoat |
| Color | Per customer required | |
| Remark | Mudflap logo | SATRA VEHICLES |
| Marking | "LONG VEHICLE" sign on the rear end | |
